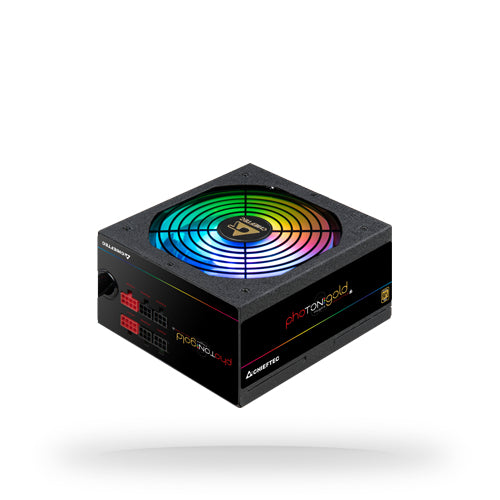

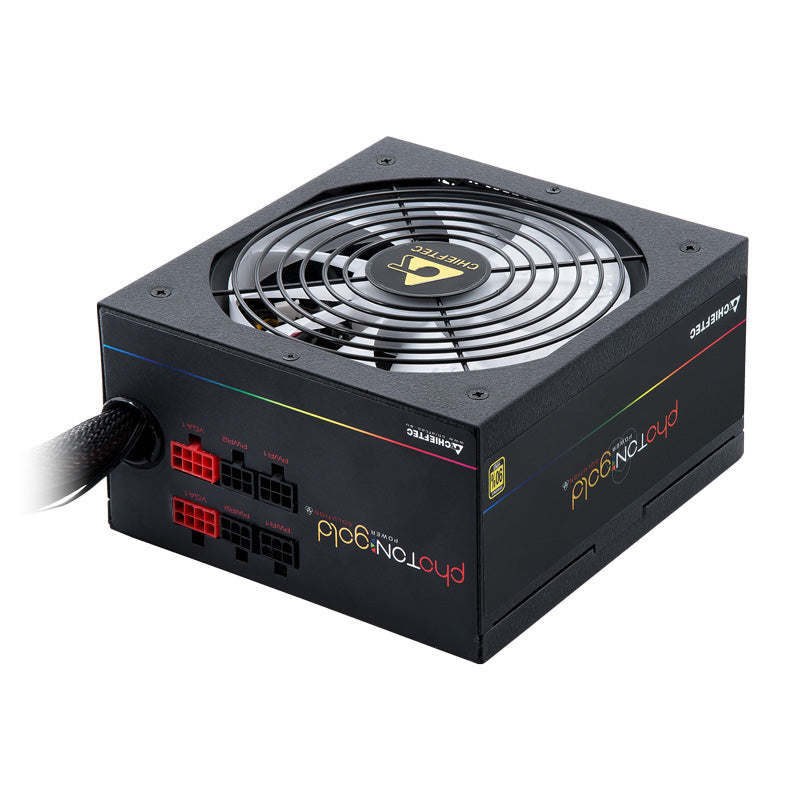

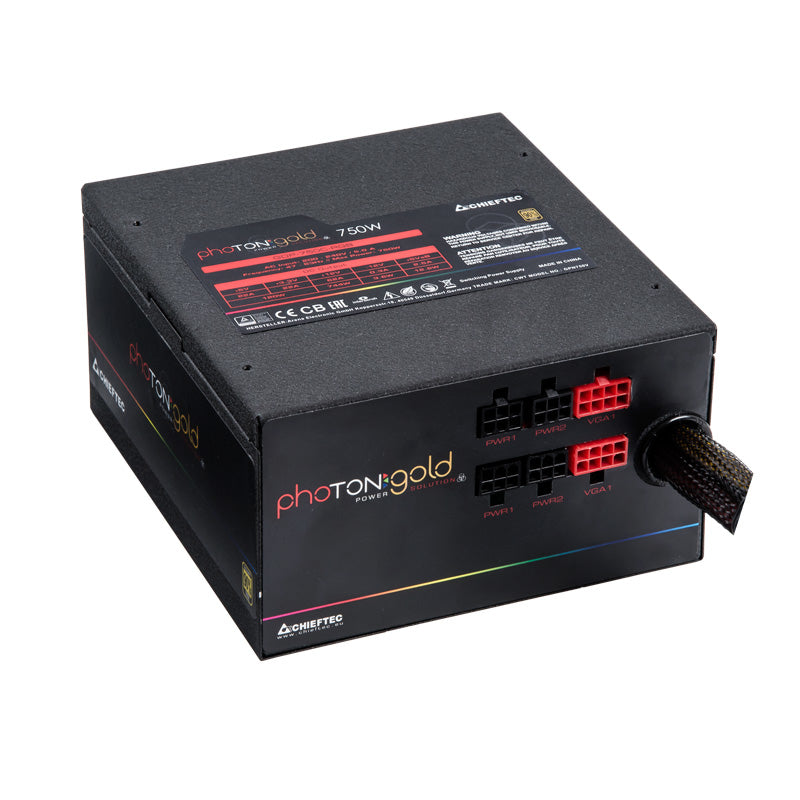

Chieftec Photon GOLD power supply unit
Chieftec Photon GOLD power supply unit
Nie można załadować gotowości do odbioru

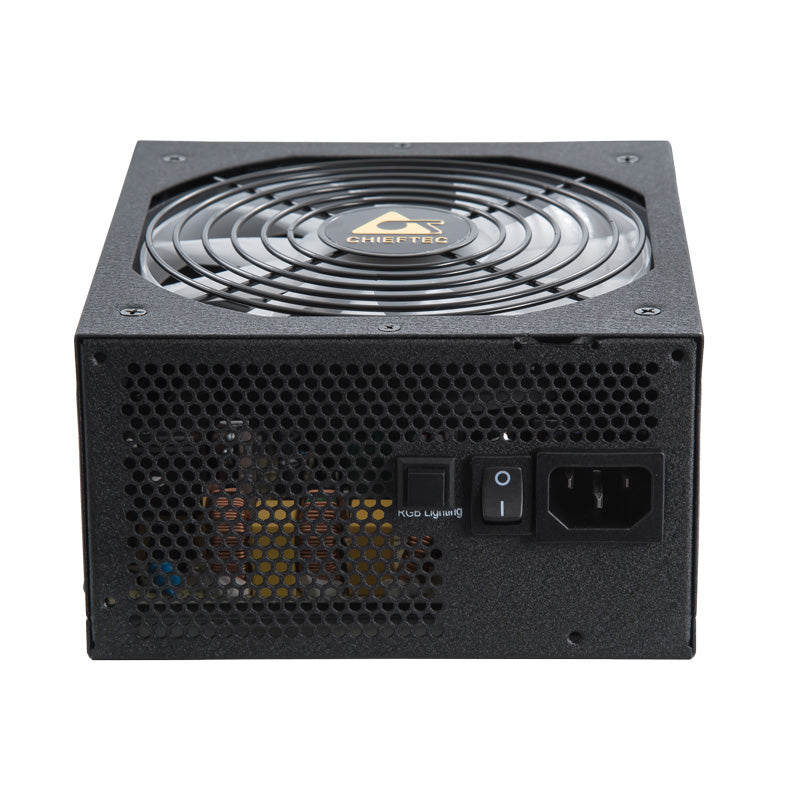

Photon GOLD series in addition provide a vast number of predefined and MBindependent lightening modes and effects, which are set via a button on the rear of the power supply while a minute toggle switch, equally located on the rear of the PSU allows the choice between the M/B RGB control (if available) or the integrated modes and effects. With its vast amount of extra-long cables and an efficiency of 90% @230V, the models of the Photon GOLD series stands out as a perfect RGB gaming solutions.
| Total power | 750 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 5 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 62 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 90% |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| SATA power cable length | 150,550 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 150,550 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power cable length | 55 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 55 cm |
| Floppy drive power connector | 1 |
| Floppy disk drive connector | Yes |

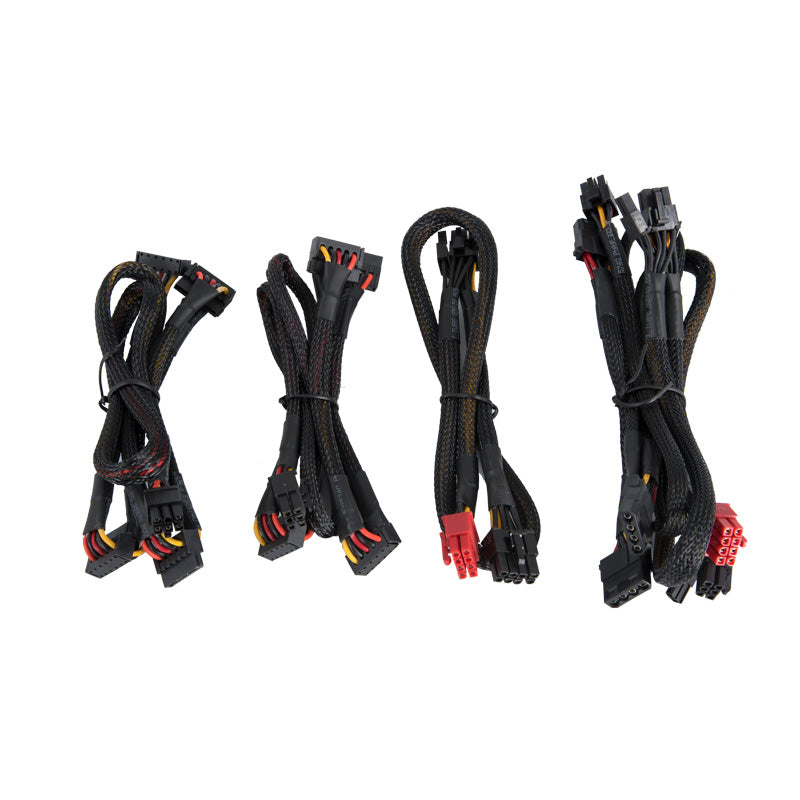

| Cabling type | Semi-Modular |
| Supported motherboard form factors | ATX |
| Purpose | PC |
| Power supply unit (PSU) form factor | PS/2 |
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Illumination | Yes |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 87 mm |
| Weight | 2.3 kg |
| Harmonized System (HS) code | 84733020 |
| Illumination colour | Blue, Green, Red |
