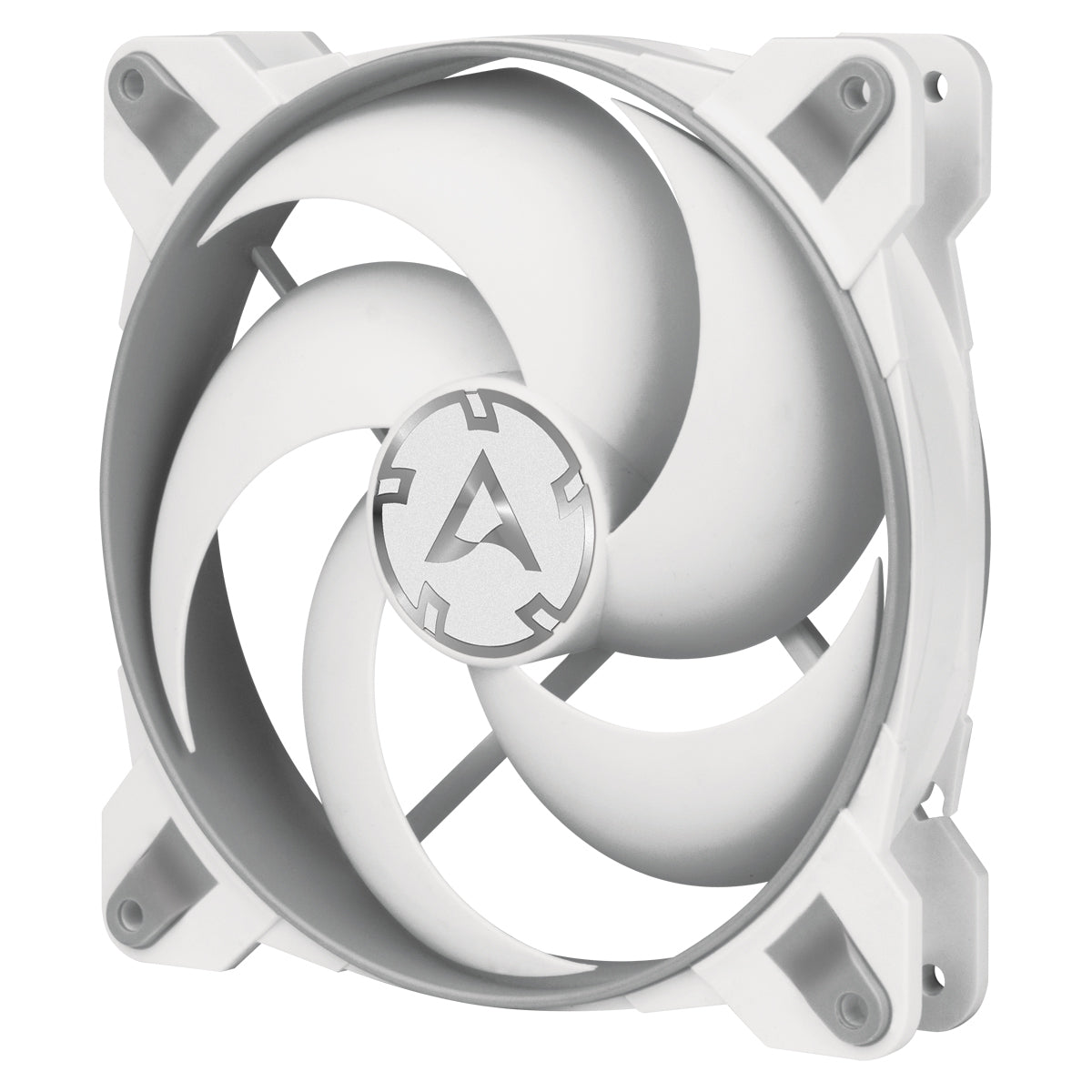

ARCTIC BioniX P140
ARCTIC BioniX P140
Couldn't load pickup availability
Pressure-optimised 140 mm Gaming Fan with PWM PST
The BioniX P140 fan features completely redesigned fan blades and is optimised for high static pressure. Thus, the BioniX P140 is especially effective when used on heatsinks and with higher air resistance.
The wide RPM range from 200 to 1950 RPM can be regulated seamlessly and synchronously with other fans thanks to ARCTIC's PWM Sharing Technology (PST).
The newly developed motor with a low coil temperature significantly increases the life span of the fan. Therefore we have extended the warranty to 10 years.
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 14 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (min) | 200 RPM |
| Rotational speed (max) | 1950 RPM |
| Noise level | 0.45 sone |
| Maximum airflow | 77.6 cfm |
| Airflow | 131.92 m³/h |
| Maximum air pressure | 2.85 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Product colour | Grey, White |
| Number of fans | 1 fan(s) |
| Number of fan blades | 5 |
| Fan connector | 4-pin + 4-pin |
| Power consumption (typical) | 1.8 W |
| Voltage | 12 V |
| Rated current | 0.15 A |
| Width | 140 mm |
| Depth | 28 mm |
| Height | 140 mm |
| Weight | 181 g |
| Cable length | 0.4 m |
| Package width | 148 mm |
| Package depth | 35 mm |
| Package height | 148 mm |
| Package weight | 230 g |
| Package type | Box |
| Screws included | Yes |
| Number of screws | 4 |
| Mounting hole pattern (W x D) | 125 x 125 mm |
| Country of origin | China |
| Harmonized System (HS) code | 84733080 |
